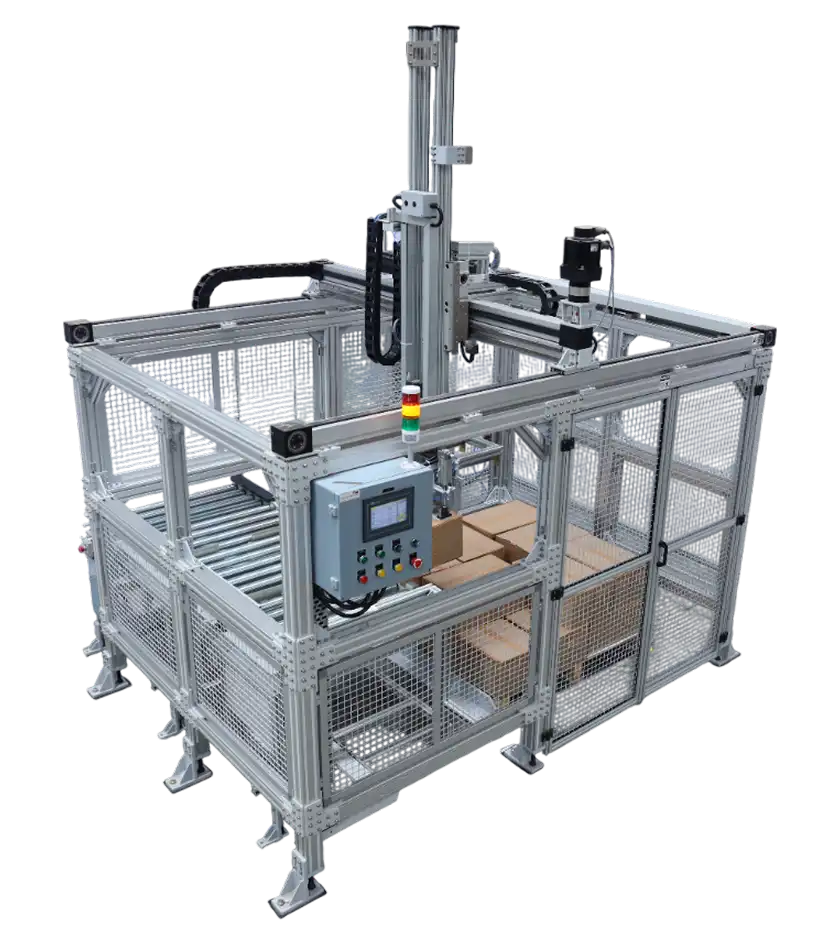

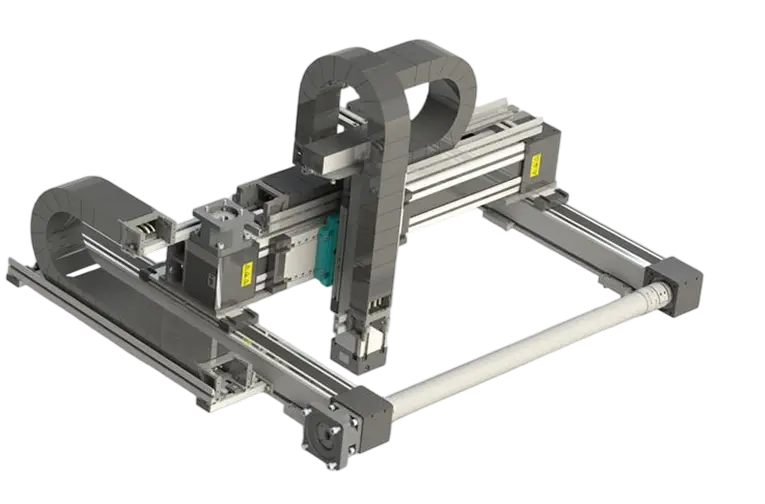

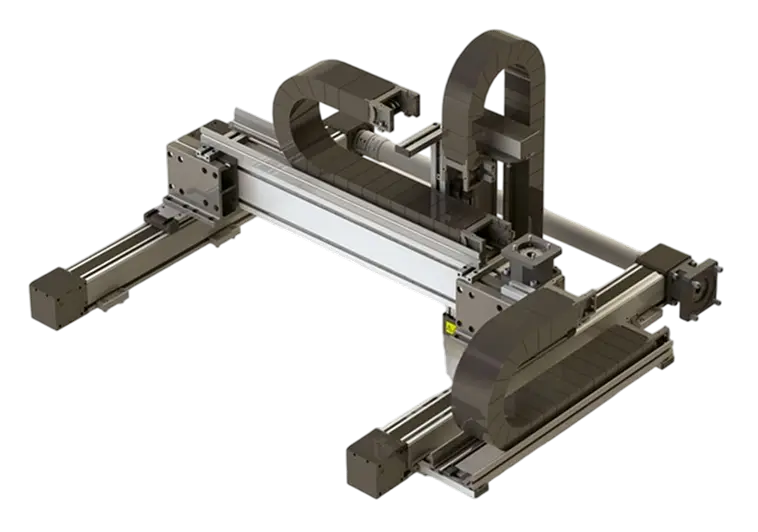

Multi-axis gantry systems are used everywhere where products have to be moved or positioned. The new multi-axis modular system from RK Rose+Krieger now makes construction and assembly of these linear, planar and three-dimensional gantries even easier. At the same time, all RK DuoLine and RK MonoLine axes in all available sizes can be combined with each other.
| Type of adaptation | X → Y | X → Z | Z → X | Component | Number |
|---|---|---|---|---|---|

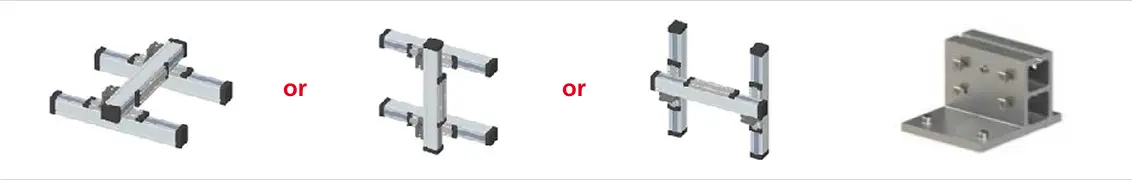

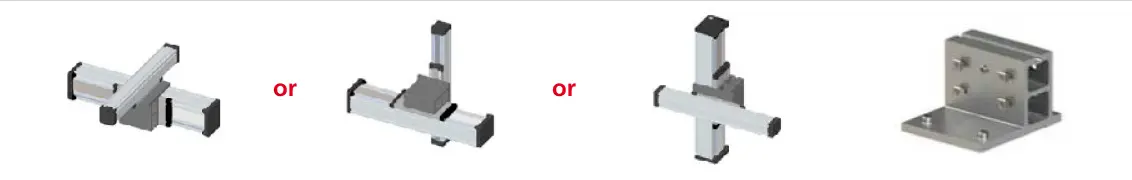

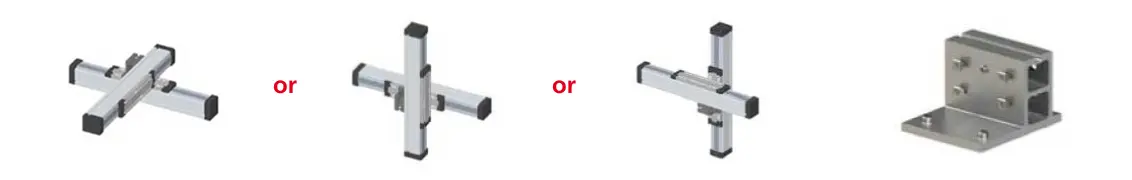

| System angle bracket Guide profile on guide profile |
|
1x | |||

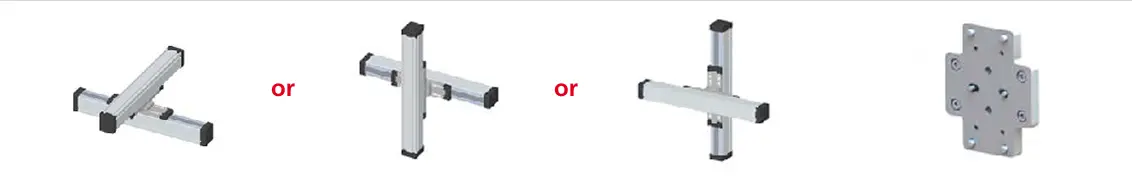

| System plate Guide profile on guide profile |
|
1x | |||
| System angle bracket Guide profile on guide profile |
|
1x | |||

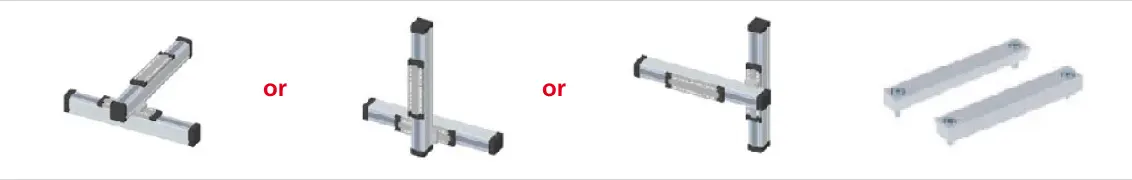

| Clamping bar Guide profile on guide profile |
|
1x | |||
| Type of adaptation | X → Y | X → Z | Z → X | Component | Number |
|---|---|---|---|---|---|

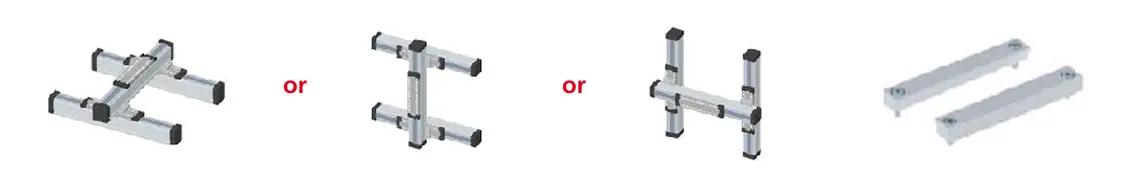

| 2-Axis Connector A Dual axis connection |
|
2x | |||
| 2-Axis Connector B Enhanced dual connection |
|
2x | |||
| Type of adaptation | X → Y | X → Z | Z → X | Component | Number |
|---|---|---|---|---|---|
|

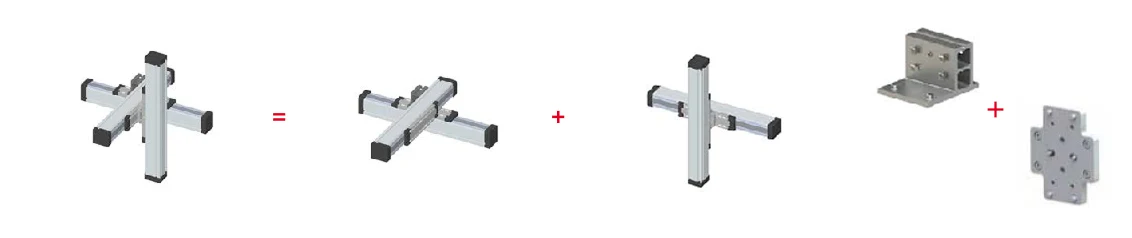

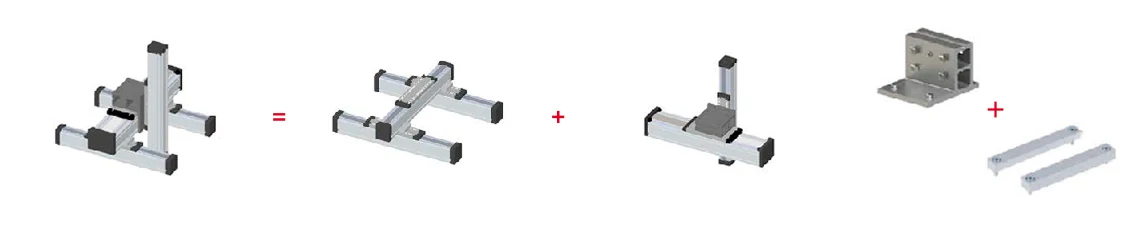

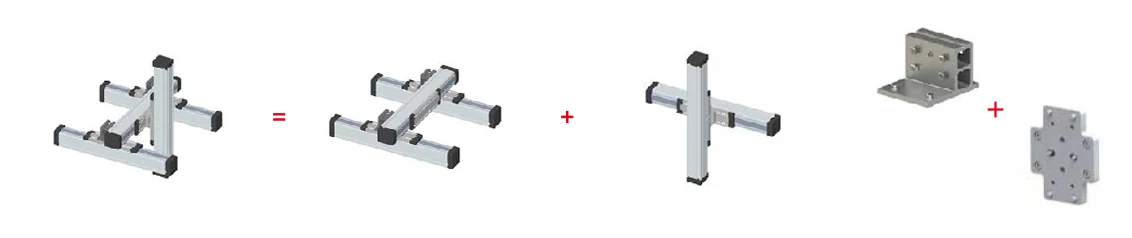

System angle bracket Guide profile on guide carriage
System plate Guide profile on guide carriage (3-Axis Systerm) |
|
3x | |||
|
System angle bracket Guide profile on guide carriage
System plate Guide profile on guide carriage (3-Axis Systerm) |
|
2x | |||
|
Clamping bar Guide profile on guide carriage System angle bracket
Guide profile on guide carriage (3-Axis Systerm) |
|
1x | |||
Everything from a single source, perfectly tailored to each other - selected quickly and easily.
